Acopower 100w mono kitAll Black 800w 60A

The ACOPOWER 100-Watt Monocrystalline Solar Panel Kit boasts a robust collection of 8 high-quality solar panels, each with dimensions measuring 40.220.11.4 inches. These panels offer flexible connectivity options, allowing users to either connect them in parallel using branch connectors or in series without any connectors. The accompanying 60A MPPT Charge Controller is a powerful addition, featuring user-adjustable settings that provide a customizable experience. The LCD screen on the controller offers real-time insights into crucial parameters such as voltage, solar panel status, battery state of charge, and DC load draw. For added convenience, the controller is compatible with a range of batteries, including lead-acid, AGM, gel, and lithium.

Designed with efficiency in mind, the negative grounding design and advanced MPPT control algorithm ensure a charging efficiency of no less than 99.5%. This advanced technology not only maximizes charging efficiency but also contributes significantly to energy savings. The versatility of this solar panel kit extends to its application scope, making it an ideal solution for RVs, cabins, homes, boats, as well as for back-up and remote power use. Additionally, the two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging, providing flexibility to suit various setups.

To instill confidence in its longevity, the ACOPOWER kit comes with a 25-year transferable power output warranty for the panels, ensuring sustained performance over the years. Moreover, a 1-year warranty is provided for the rest of the kit components, offering comprehensive coverage and peace of mind for users. With an emphasis on durability, adaptability, and efficient performance, this solar panel kit stands as a reliable choice for those seeking a renewable energy solution for diverse applications.

Features:

• Easy installation
• High Efficiency
• Sturdy
• MPPT Technology
• Safe Operation
• Reliable Performance
• Green Solar System

Specifications:

Acopwoer 100 Watts Mono Solar Panel

• Maximum Power at STC (Pmax): 100W
• Open-Circuit Voltage (Voc): 22V
• Maximum Operating Voltage (Vmp): 17.48V
• Short-Circuit Current (Isc): 6.14A
• Maximum Operating Current (Imp): 5.71A
• Operating Temperature: -40ºC to 85ºC
• Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
• Weight: 5.8kg / 12.78 lbs

Acopower 60 A MPPT Solar Charge Controller

• Nominal System Voltage: 12v/24v/36v/48v DC
• Auto work Grounding: Common negative
• Rated Charge Current: 60A
• Battery Input Voltage Range: 8V～32V
• Max. PV Open Circuit Voltage: 150V/138V
• MPP voltage range:V(BAT)+2V～108V
• Max. PV input power: 1125W/12V, 2250W/24V, 2812.5W/36V ,4500W/48V
• Rated Charge Power : 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
• MPPT Voltage Range: (Battery Voltage+2V) ~72V
• RS485 Interface: 5VDC/200mA(RJ45)
• Dimension:261*216*119mm

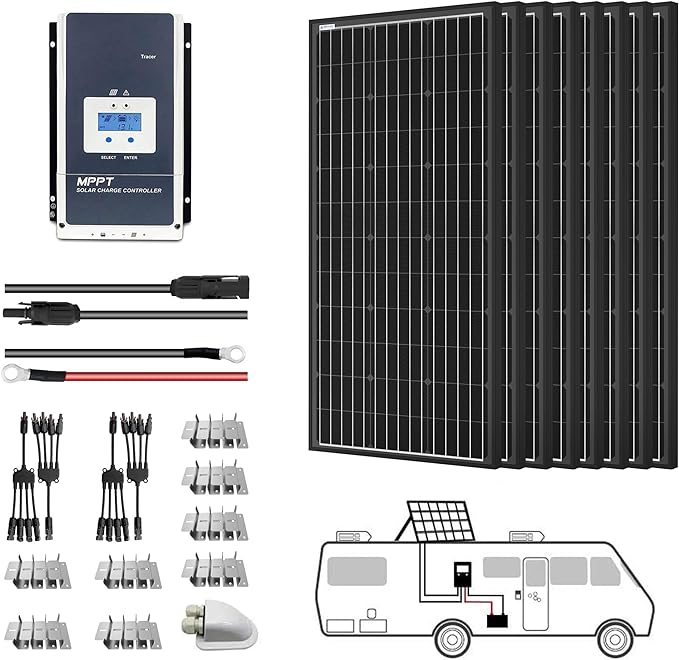

What's in the Box:

• 8PCS Mono Solar Panel
• 1PC 60A MPPT Charge Controller
• 8 Sets Mounting Z Bracket
• 1PC 30ft 12AWG PV Cable
• 1PC 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 2 Pairs 1Y4 T/Y Branch Connectors
