Renogy RDCCBBMN5PMC2P - Renogy DC Circuit Breaker Box
The Renogy RDCCBBMN5PMC2P DC Circuit Breaker Box is an innovative and top-of-the-line product that offers centralized installation and protection for devices in the residential and commercial solar system.

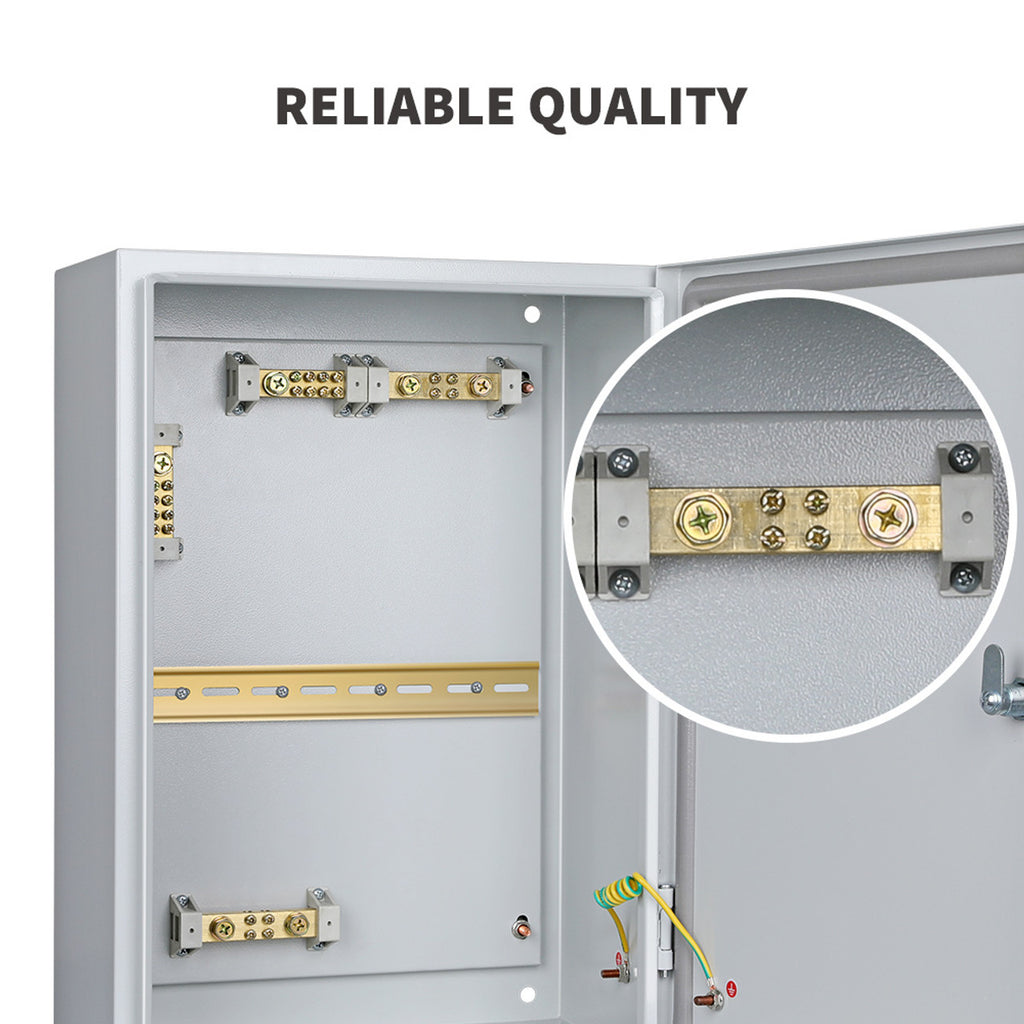

Constructed with a high-quality material like cold-formed steel that is durable and corrosion resistant, this circuit breaker box has built-in copper busbars for good electrical conductivity to ensure the system’s stable operation. Each pair of devices will be equipped with this circuit breaker to realize the system's section management and comprehensive protection. When the equipment needs maintenance or inspection, the relevant circuit can be disconnected to ensure safety.
With a sleek and compact design, this circuit breaker box is easy to install and provides peace of mind knowing that your system is safely and efficiently running. Equipment can be shielded from lightning strikes and ground faults by installing surge protection and ground fault protection systems.

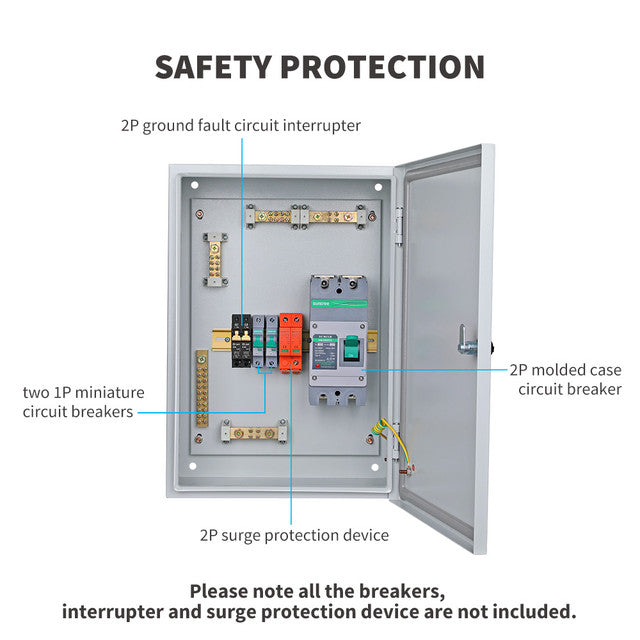

For solar panel systems, we suggest the following combination:
two 1P miniature circuit breakers
one 2P molded case circuit breaker
one 2P surge protection device
one 2P ground fault circuit interrupter
Please note all breakers, interrupters, and surge protection devices are not included.
Don't let electrical issues derail your solar power system. Invest in the Renogy RDCCBBMN5PMC2P DC Circuit Breaker Box and enjoy worry-free power generation for years!
Highlights:
• Centralized manage
• Safety protection
• Easy installation
• Reliable quality
• Worry-free use
SPECIFICATIONS:
Maximum PV Input/Output Voltage: 250VDC
Maximum PV Input/Output Current: 63A/Circuit
Maximum Battery Input/Output Voltage: 1000VDC
Maximum Battery Input/Output Current: 250A
Busbar Material: Copper
Busbar Rated Current: 200A
PV Busbar Terminal: Compression Terminals (8), Lug Terminal (1)
Battery Busbar Terminal: Compression Terminals (4), Lug Terminal (2)
Grounding Busbar Terminal: Compression Terminals (20), Lug Terminal (1)
Busbar Screw: M5 (Compression Terminal), M8 (Lug Terminal)
Recommended Busbar Terminal Torque: 26 inch·lbs (2.9 N·m) (Compression Terminal), 106 inch·lbs (12 N·m) (Lug Terminal)
PV/Grounding Busbar Conductor Size: 14 AWG~6 AWG (Compression Terminal), 12 AWG~4 AWG (Lug Terminal)
Battery Busbar Conductor Size: 14 AWG~6 AWG (Compression Terminal), 12 AWG~2/0 AWG (Lug Terminal)

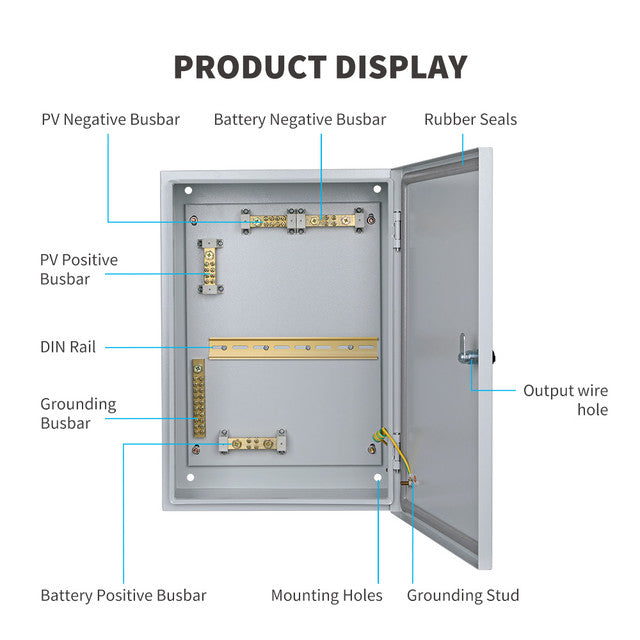

Number of Poles: 5 (PV Positive Busbar, PV Negative Busbar, Battery Positive Busbar, Battery Negative Busbar, Grounding Busbar)
Enclosure Material: Cold-Formed Steel
Enclosure Protection Rating: IP54
Enclosure Security: Keyed Cam Lock
Mounting Method: Vertical Wall Mount
Installation Environment: Indoor

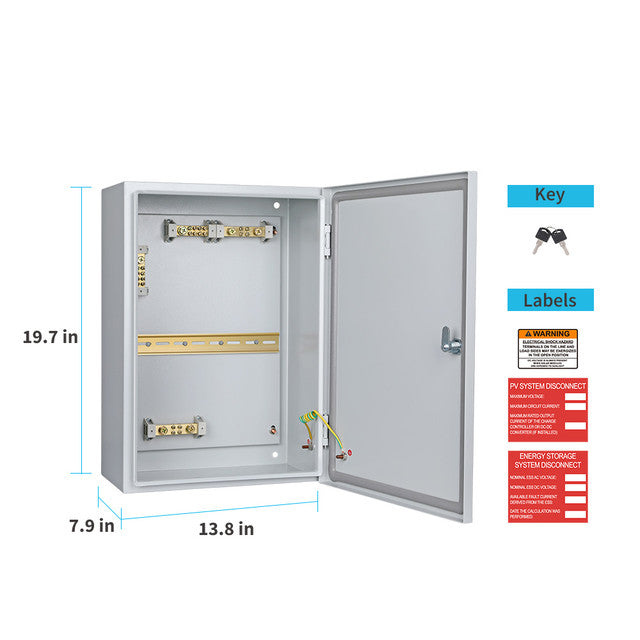

Dimensions: 19.7 x 13.8 x 7.9 inch (500 x 350 x 200 mm)
Weight: 22.7 lb
Knockout Diameter: 1.99 inch (4), 1.12 inch (4)
Conductor Size: 4 AWG-4/0 AWG
Key: 1
Labels: 3
Material and Workmanship Warranty: 1 Year
WHAT’S IN THE BOX:
1 x Renogy DC Circuit Breaker Box
1 x Key
3 x Labels
