Renogy REGO 12.8V 400Ah Lithium Iron Phosphate Battery

Meet the Renogy REGO 12.8V 400Ah Lithium Iron Phosphate Battery - the ultimate powerhouse for all your energy storage needs. This cutting-edge battery is designed for maximum performance and longevity, providing reliable power for all your off-grid adventures or backup power solutions.

Easy Installation- A plug-and-play installation device, the battery is perfect for building or upgrading your solar system, ensuring a reliable power source. The Rego battery features a lithium iron phosphate construction and comes with a capacity of 400Ah and a voltage of 12.8V. Designed specifically to handle high power demands, it can be used to power a wide range of appliances.

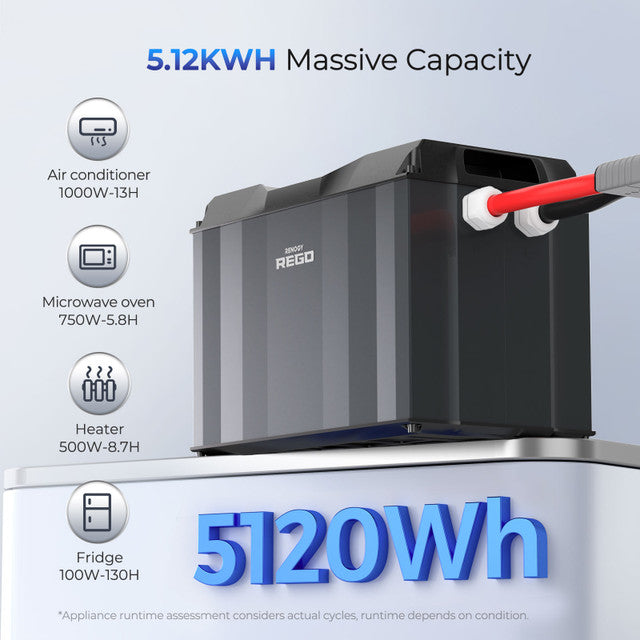

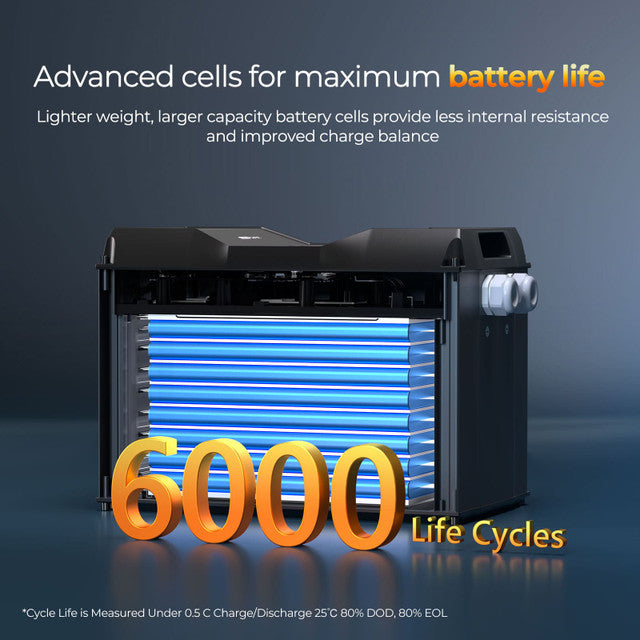

Performance- The ultra-high-performance battery with an impressive 5.12kWH power capacity in 1 battery allows you to expand by connecting up to 8 batteries in parallel, giving a total capacity of 40kWH. You can customize your power needs as per your preference. It also provides an extraordinary lifespan of 6000 cycles.

Charging- The REGO 12.8V 400A lithium battery guarantees longer life, more consistent performance, and quicker charging. The battery can be fully charged in 1.5 hours with a maximum continuous charging current of 300A.

LED Indicators- The battery's status, heater status, and battery level can all be seen on the bright LED indicators on top of the battery. With just a glance, you can determine everything you need about the battery.

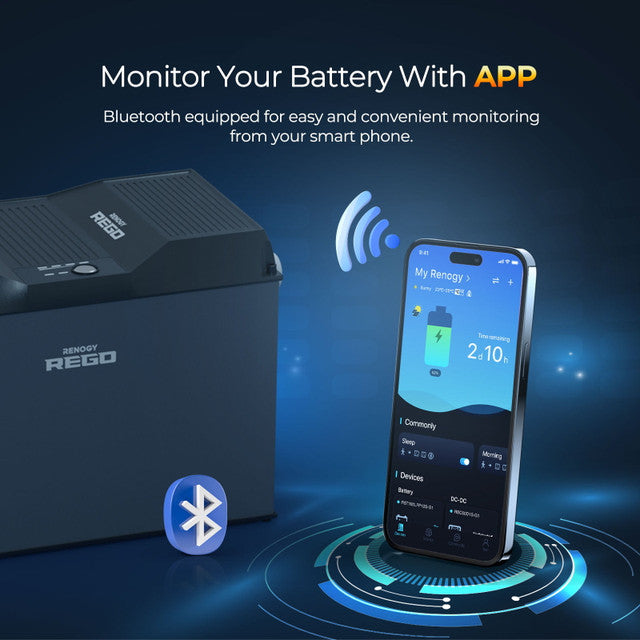

Bluetooth Connectivity- With the REGO 12.8V 400Ah lithium battery's integrated Bluetooth module, you can check the battery's condition using a smartphone and the Renogy DC Home App without the need for an additional external Bluetooth device.

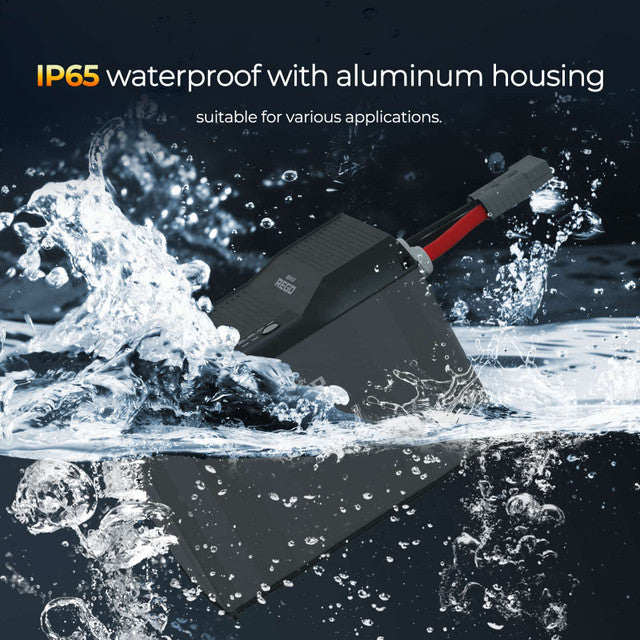

IP65 Waterproof Design- The IP65-rated, waterproof REGO 12.8V 400Ah lithium battery is suitable for a variety of environments, including yachts, marine environments, and outdoor settings. The battery is fully protected from dust and other particles by the die-casting technology lids, which have a significantly higher tolerance for extreme temperatures, superior electrical qualities, and are more durable and stable than plastic parts.

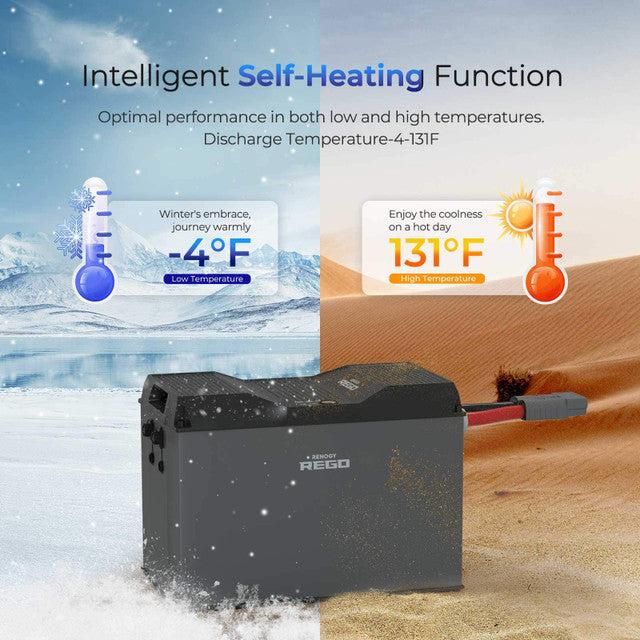

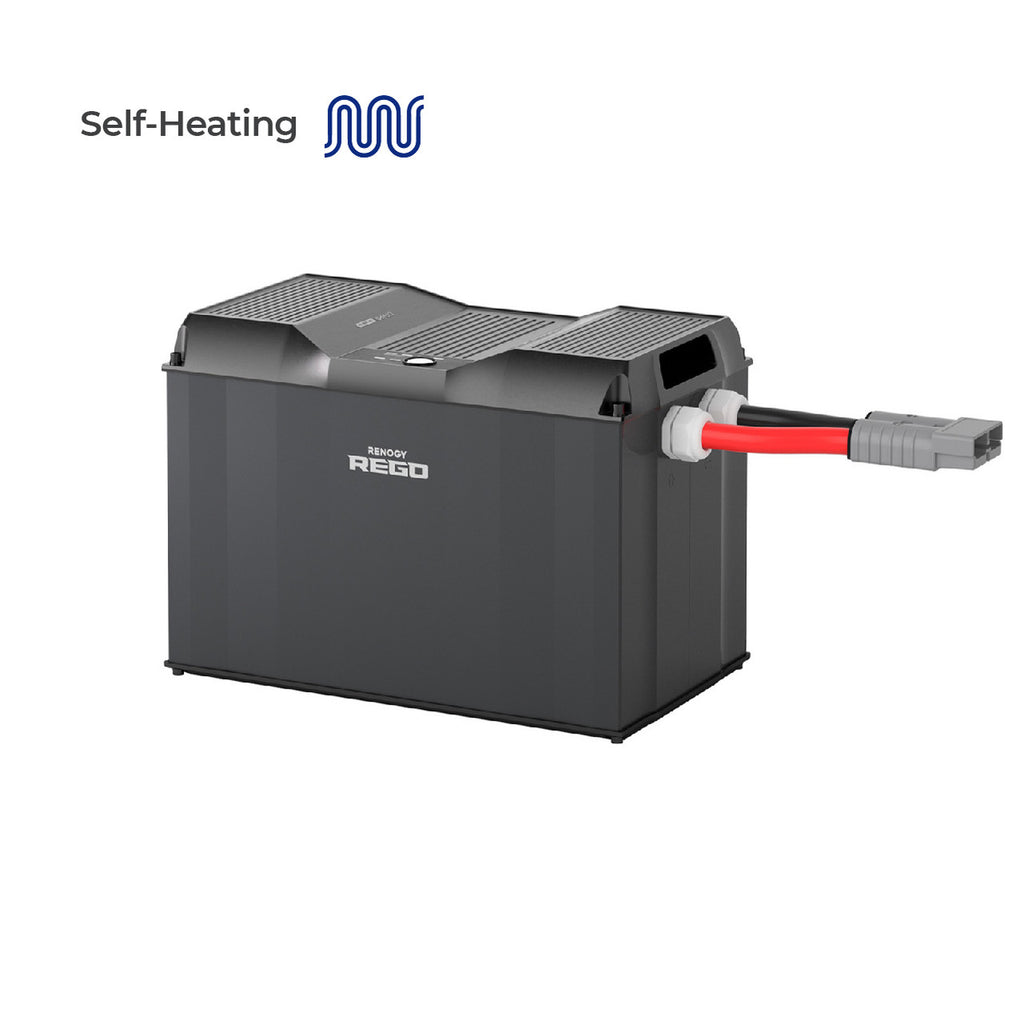

Safety- Safety is paramount with the REGO battery. The 62 BMS safety protocols enable precise cell balancing and store up to 150 event records, making it the most reliable in its category.  The built-in heater operates automatically at low temperatures to keep the battery charging, assuring charging performance in low temperatures and increasing battery lifespan.

Power your next off-grid adventures with the Renogy REGO 12.8V 400Ah Lithium Iron Phosphate Battery- an all-in-one power system for maximum energy and comprehensive protection!

Highlights:
•    Plug-and-play installation
•    Ultrahigh-power capacity of 5.12kWH

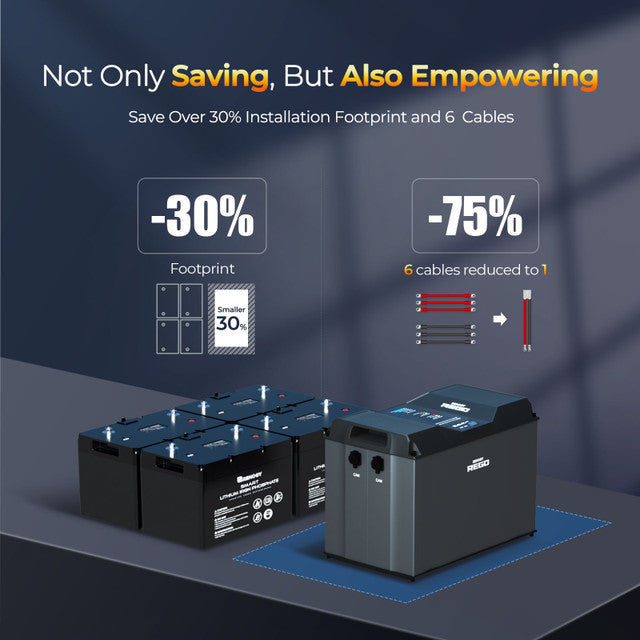

•    Space efficient
•    12.8V 400Ah Lithium iron phosphate battery
•    Simplified connection with expandable battery capacity (up to 8 batteries)
•    1.5 Hours fast charging and stable performance
•    LED status indicators
•    Built-in Bluetooth connectivity with the Renogy DC home app in phone
•    IP65 dust and water proof
•    60+ BMS protocols

SPECIFICATIONS:

Electrical Specifications

Battery Type: Lithium Iron Phosphate

Rated Capacity: 400Ah

Nominal Voltage: 12.8V

Energy: 5120Wh

Cycle Life (0.5C,25℃): 6000 Cycles at 80% DOD

Connection Method: Parallel (Up to 8)

Automatically Self-heating Function: No

Mechanical Specifications

Dimensions: 18.0 x 13.0 x 10.5 inch (457 x 329 x 267.2 mm)

Weight: 112.4 lbs. (51 kg)

Protection Rate: IP65

Housing Material: Die Cast Aluminum/Extruded Aluminum

Charging Parameters

Charge Voltage: 14.4V

Maximum Charge Current: 300A

Charge Cut-off Voltage: 14.4V

Discharging Parameters

Maximum Continuous Discharging Current: 350A

Discharge Cut-off Voltage: 10V

Temperature Parameters

Standard Operation Temperature: Recommended: 59~86 ℉ / 15～30℃

Storage Temperature: Less Than 1 Week: -22°F~140°F (-30°C~60°C) Less Than 6 Months: -4°F~113°F (-20°C~45°C)

Charge Temperature: 32~131℉ / 0～55℃

Discharge Temperature: -4~131℉ / -20～55℃

Communication Port

Built-in Bluetooth: Yes

Communication Port: No

Warranty

Material and Workmanship Warranty: 5 Year

Certifications

MSDS, UN38.3, FCC: Yes

4/0AWG Anderson Adapter Cable (Optional)

Length: 1FT

Gauge (Wire Size): 4/0 AWG

Terminal Size: 3/8in

Max Current: 405A

Rating Voltage: 600v

Temperature: -40℃-150℃/-40℉-221℉

WHAT’S IN THE BOX:

1 x 12.8V 400Ah Lithium Iron Phosphate Battery

1 x Cable (Optional)
