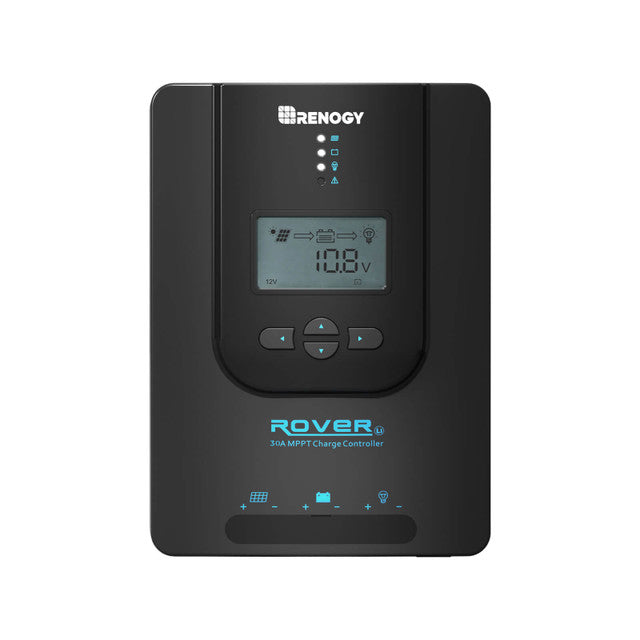

Renogy Rover Li 30 Amp MPPT Solar Charge Controller(G2)
The Renogy Rover Li 30 Amp MPPT Solar Charge Controller(G2) is the ultimate way to harness the sun's power and keep your batteries charged and ready to go. This advanced charge controller is designed specifically for lithium batteries, ensuring optimal charging efficiency and longevity.
The Rover Li 30 Amp MPPT Solar Charge Controller features cutting-edge Maximum Power Point Tracking (MPPT) technology, which maximizes the solar panel's output and delivers up to 30% more power compared to traditional PWM charge controllers. With a 98% conversion efficiency and 99% tracking efficiency, this controller can accurately track the maximum power point of the solar panel in any weather conditions.
Made of robust die-cast aluminum, the heat sink that comes with the Rover 30A Solar Charge Controller allows the heat to flow away through tubes to ensure maximum charging efficiency and safety of critical components. The Renogy Rover G2 is not only high-performing but also user-friendly. With multiple protection features including overcharge, over-discharge, reverse polarity, and short circuit, you can trust that your batteries are in safe hands. Rover 30A Solar Charge Controller's integrated exterior temperature sensor allows it to monitor battery temperature year-round, preventing undercharging in freezing weather (-40°F) and overcharging in scorching hot (149°F).
Maximize energy output and maintain battery health with the Renogy Rover Li 30 Amp MPPT Solar Charge Controller(G2) advanced controller. Shop now and embrace a more efficient renewable energy solution!
Highlights:
• Robust charging
• Efficient MPPT technology
• LiFePO4 Battery compatibility
• Custom charging parameters
• Real-time monitoring
• 98% Conversion efficiency; 99% tracking efficiency
• Certified protections
• Made of robust die-cast aluminum
SPECIFICATIONS:
Electrical Parameters

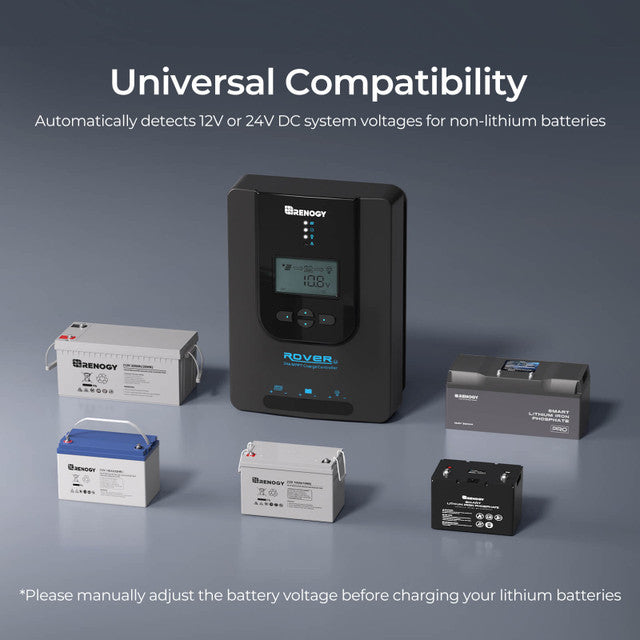

Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium Batteries)
Rated Charge Current: 30A
Max. PV Input Voltage: 95 VDC
Max. PV Input Power: 12V/400W, 24V/800W
Power Consumption: ＜100mA/12V; ＜58mA/24V
Max Battery Voltage: 32V
Ground Type: Negative

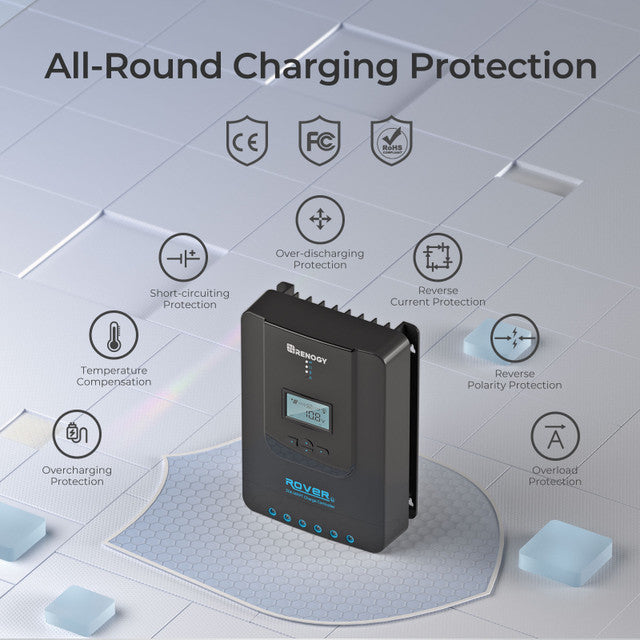

Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
Environmental Data
Protection Level: IP32
Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity: ≤ 90%, No Condensation
Temperature Compensation: -3mV/°C/2V
Mechanical Specifications
Dimensions: 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
Weight: 4.4 lbs / 2.0 kg
Max. Terminals Size: 8 AWG 10mm2
Certifications
CE: Yes
FCC Class B Part 15 Compliant: Yes
Warranty: Material and Workmanship Warranty: 3 Year
WHAT’S IN THE BOX:

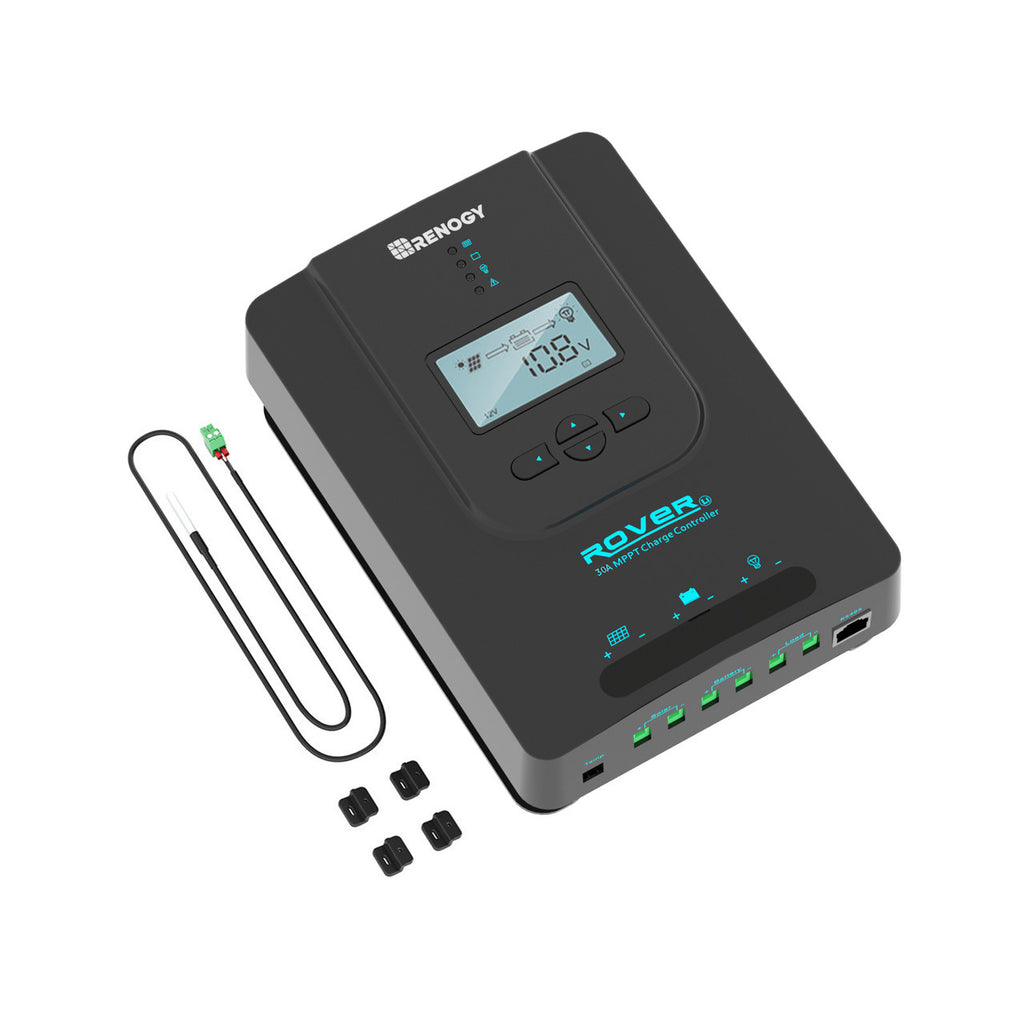

1 x Renogy Rover 30A MPPT Solar Charge Controller
1 x Remote Temperature Sensor
4 x Mounting Brackets
1 x User Manual
