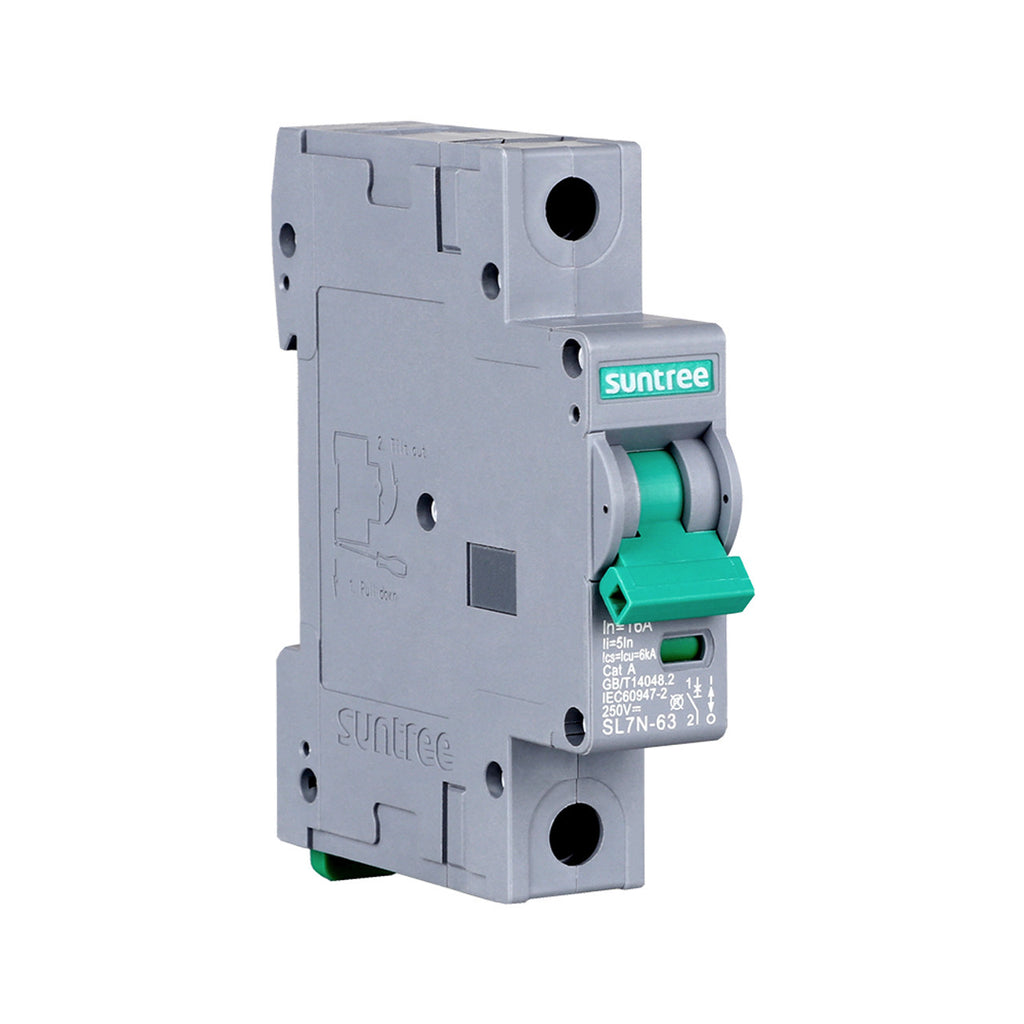

Renogy Suntree 63A 1P Miniature Circuit Breaker
The Renogy Suntree 63A 1P Miniature Circuit Breaker is a sleek and reliable solution for protecting your electrical systems. Designed for maximum efficiency and durability, this miniature circuit breaker is perfect for residential and commercial applications.
With a rating of 63A and a single pole design, the Renogy Suntree circuit breaker provides ample protection for your circuits without taking up unnecessary space. Its compact size makes it easy to install and maintain, while its high-quality construction ensures long-lasting performance. Multiple safety certifications and a strong 1.5-year warranty on material and workmanship make it a reliable and dependable device protector.
No more worrying about overloaded circuits and electrical malfunctions with the Renogy Suntree 63A 1P Miniature Circuit Breaker. Trust in the power of Renogy to keep your electrical systems safe and secure!
Highlights
• Double security
• Safe to use
• Durable

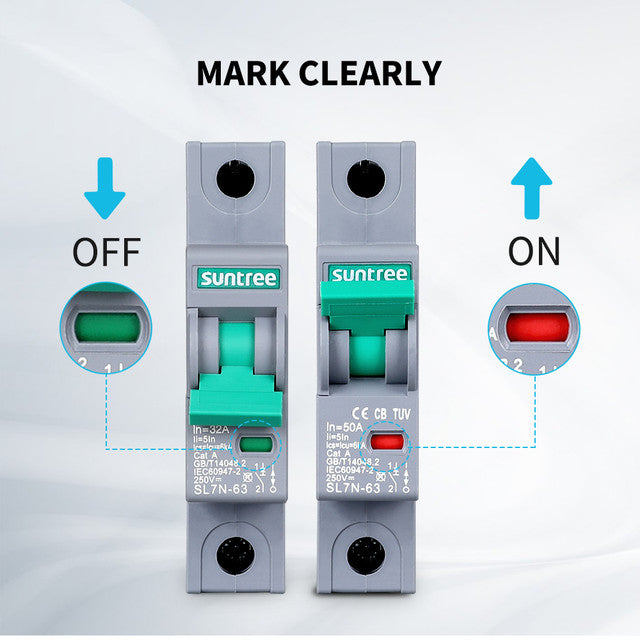

• Built-in indicator window
• Easy installation
• Multiple safety certifications
SPECIFICATIONS:
Rated Insulation Voltage: 1250V
Operating Temperature Range: -22℉~158℉ (-30℃~70℃)
Storage Temperature Range: -40℉~185℉ (-40℃~85℃)
Rated Operating Voltage: 250V
Rated Frame Current: 63A
Protection Rating: IP20
Rated Current: 63A
Operating Relative Humidity: ≤95%
Number of Poles: 1
Rated Non-Tripping Current: 10.5A/16.8A/33.6A/52.5A/66.15A (≥1h)
Rated Tripping Current: 13A/20.8A/41.6A/65A/81.9A (<1h)
Rated Instantaneous Tripping Current: 60A/96A/192A/300A/378A (<0.1s)
Operating Short-Circuit Breaking Capacity: 6KA
Ultimate Short-Circuit Breaking Capacity: 6KA
Rated Impulse Withstand Voltage: 6KV

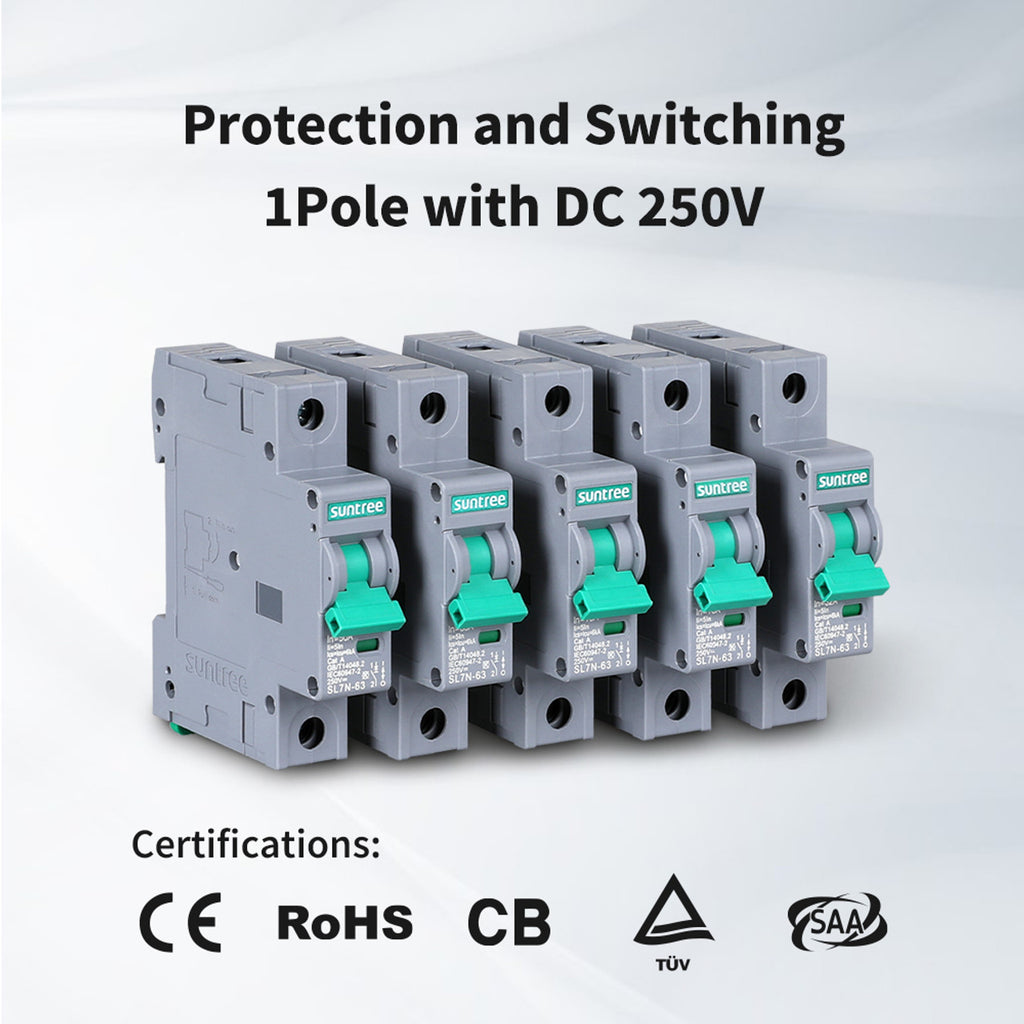

Certifications: CE, RoHS, CB, TUV, SAA

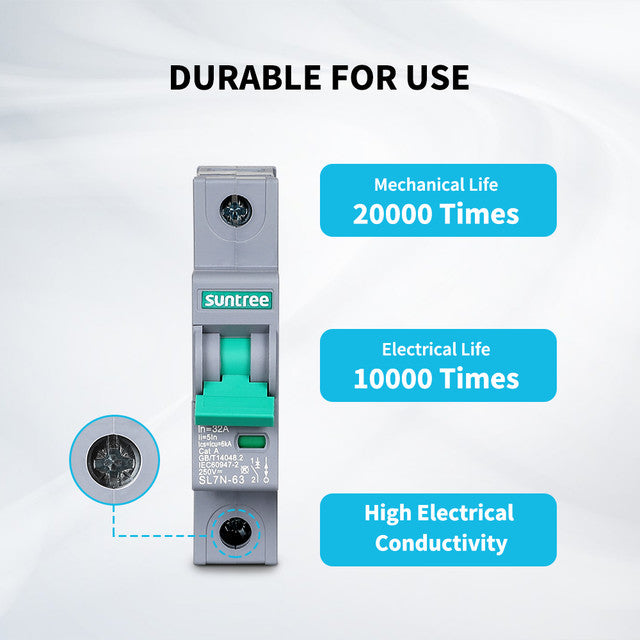

Mechanical Life: 20000 Times
Electrical Life: 1000 Times (<125VDC)
Trip Mechanism: Thermal-Magnetic
Damp Heat Resistance: Type 2

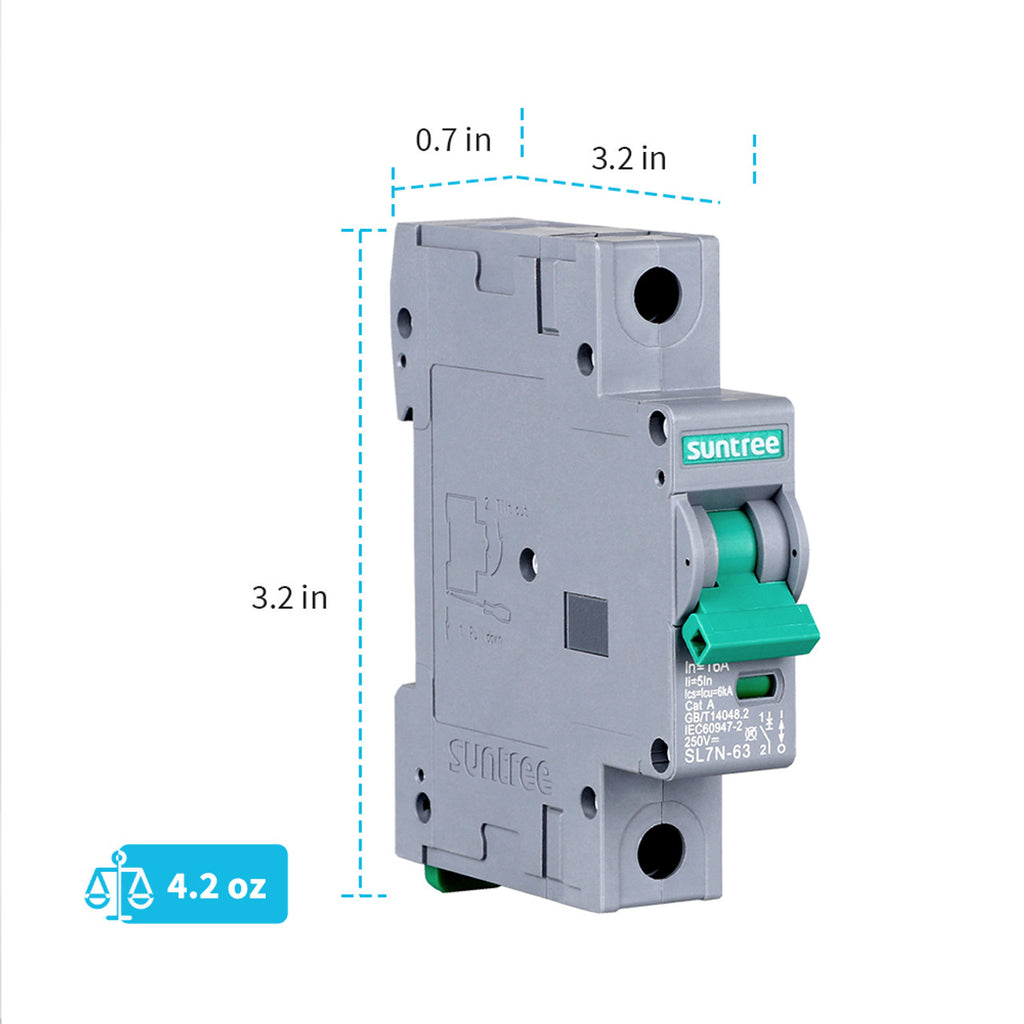

Dimensions: 3.2 x 3.0 x 0.7 in (82 x 76 x 18 mm)
Weight: 4.2 oz (120 g)
Installation Method: DIN Rail
Recommended Terminal Torque: 17.7 inch·lbs~20.4-inch lbs (2 N·m~2.3 N·m)
Conductor Size: 14 AWG~4 AWG
Material and Workmanship Warranty: 1.5 Year
WHAT’S IN THE BOX:
1 x Renogy 63A 1P Miniature Circuit Breaker
